JA Solar Panels
With electricity prices across New South Wales climbing year on year, the panel you put on your roof decides how much you claw back over the next three decades. Not every panel holds up the same way once a Sydney summer sets in.
At Charlie Sparks Electrical & Solar, we supply and install JA Solar panels for homes and businesses across Sydney. JA Solar is one of the largest and longest-running module manufacturers in the world, and their DEEP BLUE 4.0 Pro n-type range brings genuine premium-tier efficiency to Australian rooftops at a price point that makes the sums work.
Why JA Solar Panels Perform Differently in Australian Conditions
Australian roofs are a tough test. Sustained 40°C days, salt-laden coastal air, hail, and dust that settles for weeks between rain. A panel that performs well in a European lab does not always survive that combination.
JA Solar’s n-type double glass modules are built for these conditions. Replacing the standard polymer backsheet with a second sheet of tempered glass gives the panel a sealed, moisture-resistant structure, and the n-Bycium+ cell technology behind it holds output better as the roof surface heats up.
For Sydney property owners, this means:
- More power from less roof: The 475W module runs at 23.8% efficiency, built on cells converting up to 26% of the light hitting them. On a compact or broken-up Sydney roof, that is more generation from the same number of panels.
- Better performance in the heat: A temperature coefficient of -0.29%/°C means less of your generation disappears on the hottest days of the year, which is exactly when your air conditioning is drawing the most.
- Built to last outdoors: Double glass construction, 1.6mm front and back, resists moisture ingress, salt mist, and abrasion far better than a backsheet panel. The frame is rated to 5400Pa front load, which covers Sydney wind and hail conditions comfortably.

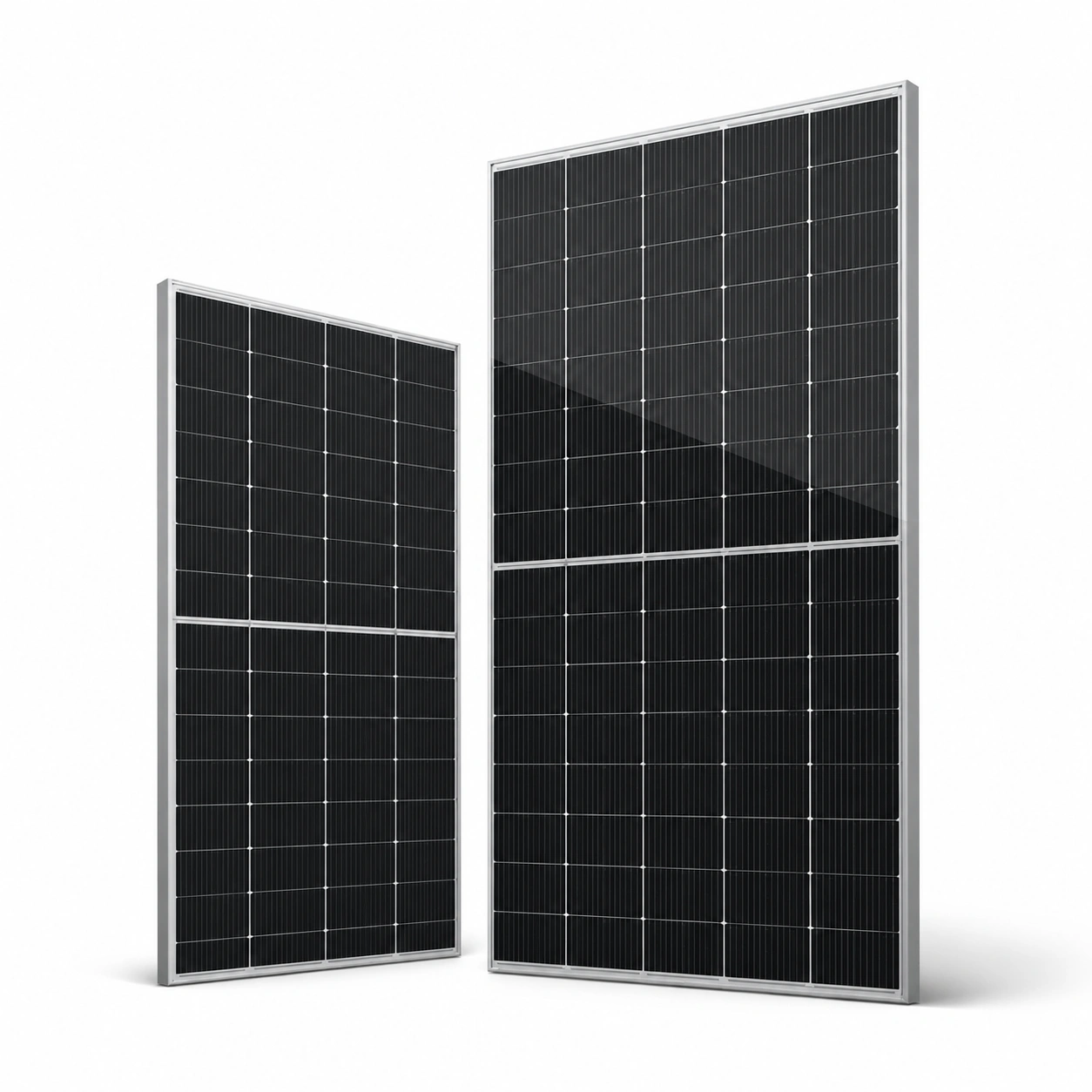

JA Solar Panel Range
We select specific JA Solar models to suit the roof, the shading, and the power demand of each property rather than fitting the same panel to every job.

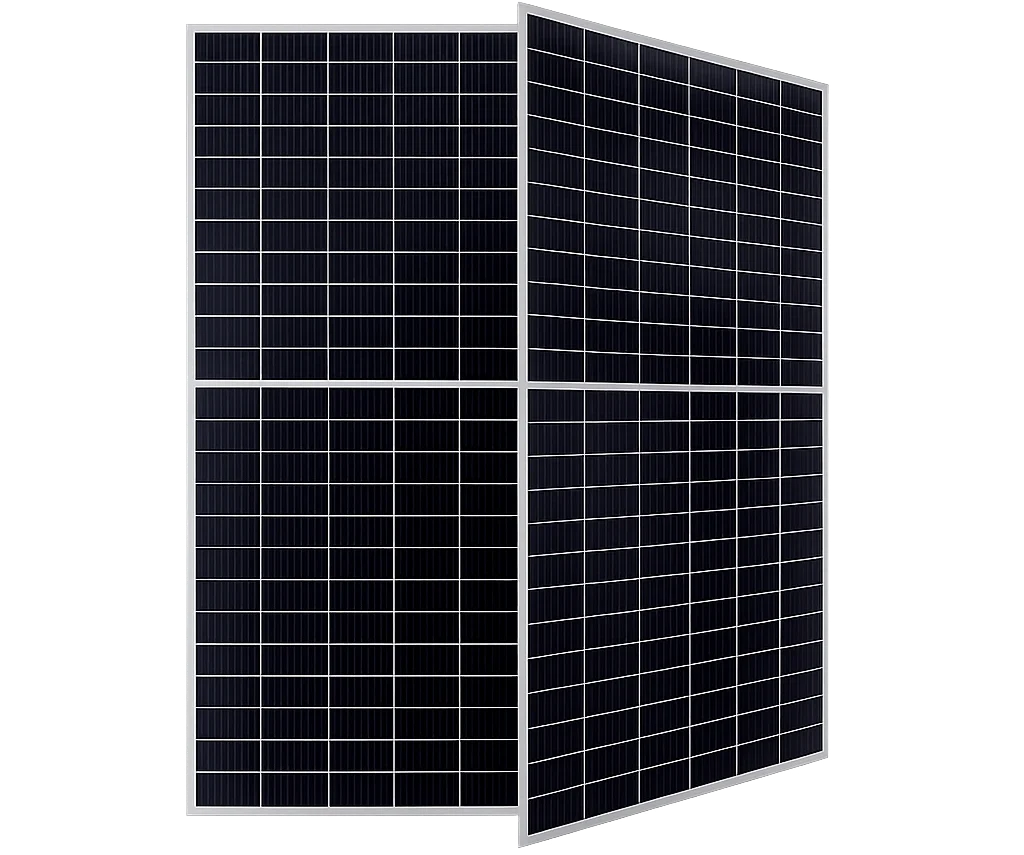

JA Solar 475W N-Type Double Glass Monofacial
The 475W double glass module is our standard recommendation for Sydney residential installs. At 23.8% efficiency it sits in the top tier of what is currently available, packing that output into a compact 54-cell footprint that suits the smaller and more broken-up roof planes common on Sydney homes.
JA Solar Panel Specifications
The technical data is where a solar investment is either sound or it is not. Here is what sits behind the JA Solar 475W n-type module.
Temperature Coefficient: -0.29%/°C
Output falls by just 0.29% for every degree above 25°C, holding performance better than standard p-type panels once roof temperatures climb through a Sydney summer.
Module Efficiency: 23.8%
The 475W JAM54D40 converts 23.8% of the sunlight striking it into usable power, built on n-Bycium+ cells rated up to 26% conversion efficiency. More generation from the same roof area.
Degradation: 1% Year One, 0.4% After
Still warranted at 87.4% of rated output after 30 years, which is 6.3% ahead of a standard module linear performance warranty.
25 + 30 Year Warranty
A 25-year product warranty covering the panel itself, alongside a 30-year linear power output warranty covering what it produces.
How We Install JA Solar Panels
Every JA Solar panel installation we complete follows the same process, from the first roof inspection through to grid connection and handover.
Roof Inspection & Energy Assessment
We assess your roof structure, pitch, orientation, and shading, then review your electricity bills and usage pattern. That determines the system size and panel layout that actually returns the most over time.

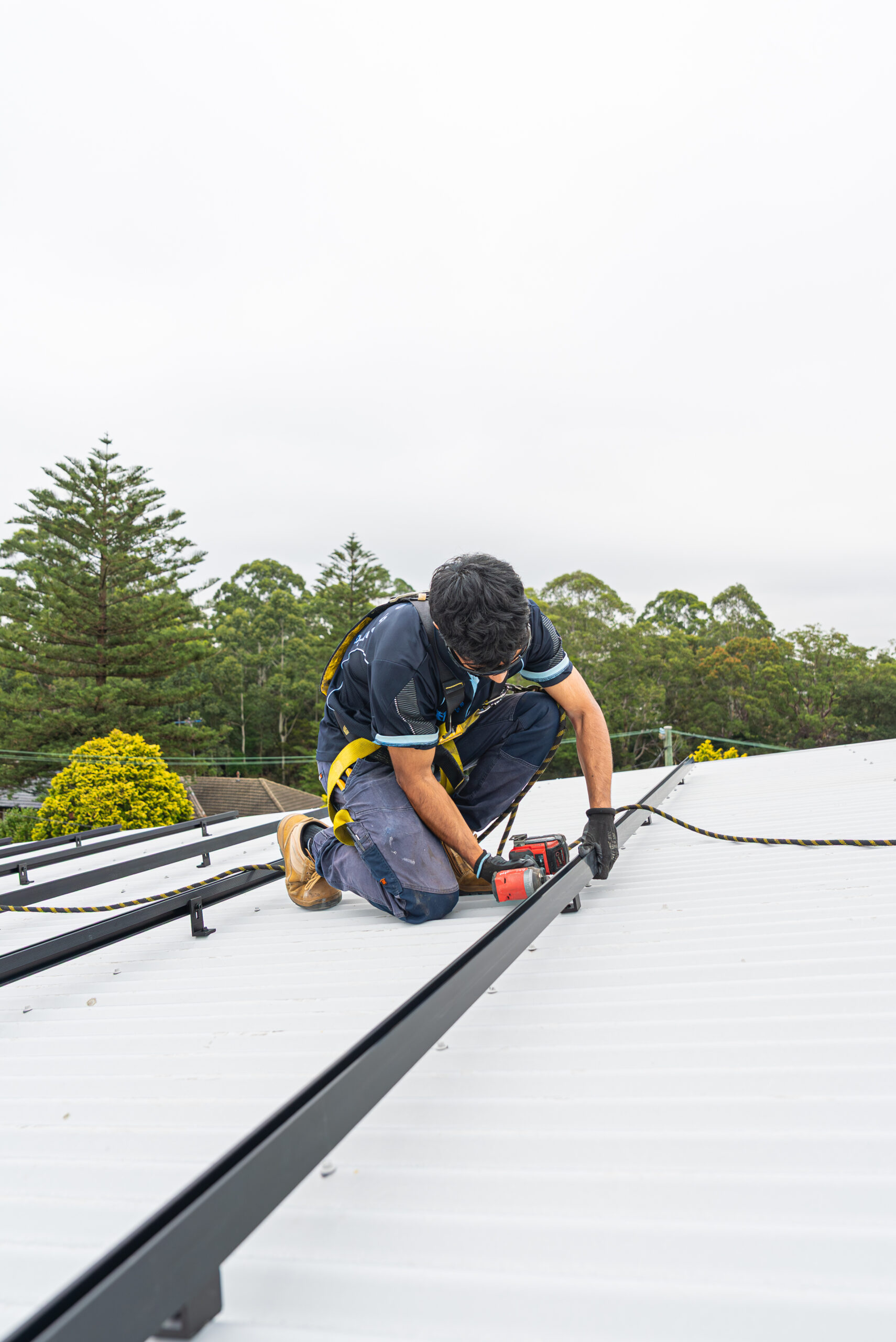

Professional JA Solar Panel Installation
Our licensed installers mount the panels on premium racking rated for local wind zones. Every installation meets AS/NZS 5033 and Clean Energy Council standards, and it is handled by our own team rather than subcontractors.
Testing, Monitoring & Handover
We test and commission the system, submit the grid connection paperwork, and walk you through your monitoring app so you can see what the system is producing from day one.
Power Your Property with JA Solar Panels
High Efficiency N-Type Cells
n-Bycium+ half-cell technology with 16 busbars converts up to 26% of incoming light at cell level and 23.8% at module level, so a smaller array does the same work.
Double Glass Durability
Two sheets of 1.6mm tempered glass instead of a polymer backsheet means better resistance to moisture, salt, and mechanical stress, and a lower risk of the microcracking that quietly eats output over time.
Strong Low Light Response
The modules respond well at low irradiance, starting earlier in the morning and running later into the afternoon, which widens the daily generation window.
25 and 30 Year Warranties
A 25-year product warranty and a 30-year linear power output warranty from the manufacturer, sitting alongside our own 10-Year Workmanship Guarantee on the installation.
What our clients say!
What Makes Us the Right Choice
A good panel installed badly is a bad system. The installation is where the difference shows up.
Certified Installers
Our Sydney team is SAA certified and licensed Master Electricians. Every job is completed in-house, so quality and accountability sit with us.
Local Expertise
Based in Condell Park, we know the council requirements, network rules, and roof types across Sydney, and we design systems around them.
Proven Track Record
Hundreds of completed installations backed by 5-star reviews, earned through clean workmanship and clear communication.
End-to-End Service
System design, STC rebate paperwork, grid connection, and ongoing support. You deal with one team from quote to commissioning.
Start Your Solar Journey with JA Solar Panels
At Charlie Sparks Electrical & Solar, our pricing is fixed and transparent, with no hidden costs and an ironclad 10-Year Workmanship Guarantee behind every JA Solar panel installation.
Frequently Asked Questions
1. Are JA Solar panels good quality?
Yes. JA Solar is one of the largest module manufacturers in the world and holds Bloomberg Tier 1 status. The DEEP BLUE 4.0 Pro n-type range is certified to IEC 61215 and IEC 61730, manufactured under ISO 9001, 14001 and 45001 systems, and carries a 25-year product warranty alongside a 30-year power output warranty. At 23.8% module efficiency it sits alongside the premium panels on the Australian market.
2. How long do JA Solar panels last?
The panels carry a 30-year linear power output warranty and a 25-year product warranty. Degradation is 1% in the first year and 0.4% each year after, so a panel installed today is still warranted to produce 87.4% of its rated output after three decades. Double glass construction is a large part of why that figure holds up.
3. What is the difference between n-type and p-type solar panels?
N-type cells use a different silicon doping structure that all but removes light induced degradation, holds efficiency better in heat, and ages more slowly. P-type panels cost less to produce but lose a small percentage of output in their first weeks of operation and fade faster across the life of the system. JA Solar’s n-Bycium+ cells are n-type.
4. How much can I save with JA Solar panels?
Savings depend on your system size, usage pattern, and feed-in tariff. Most Sydney households with a well-sized system cut their electricity bills substantially, and STC rebates reduce the upfront cost. We model the numbers for your specific property during the assessment so you see the payback before you commit.
5. How long does a JA Solar panel installation take?
Most residential solar panel installations are completed in a single day. Larger or more complex systems, including those with battery storage or switchboard upgrades, may run into a second day. We confirm the timeline at the quoting stage.
